Note: These instructions are only for the LTI 1.3 integration with Canvas. If you are unsure what version of LTI is being used, contact your Canvas administrator.


  1. In the modules area of the Canvas course, add a new module using the +Module button. Add a name for your module and select the Add Module button.

Canvas Add Module option

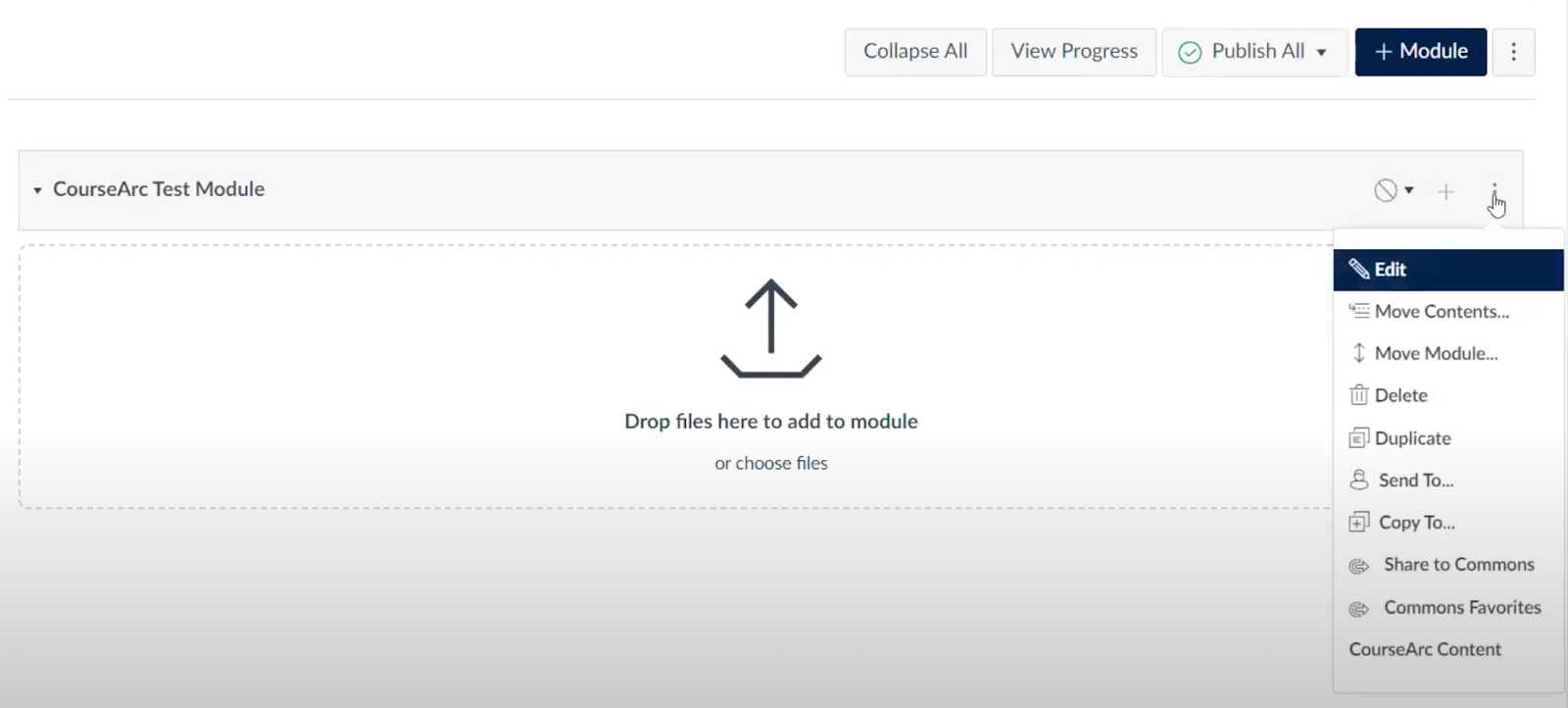

  1. Your new module now displays with the name in a gray box. To the right of the gray box, select the 3 dots button to open the menu.


Canvas module menu options

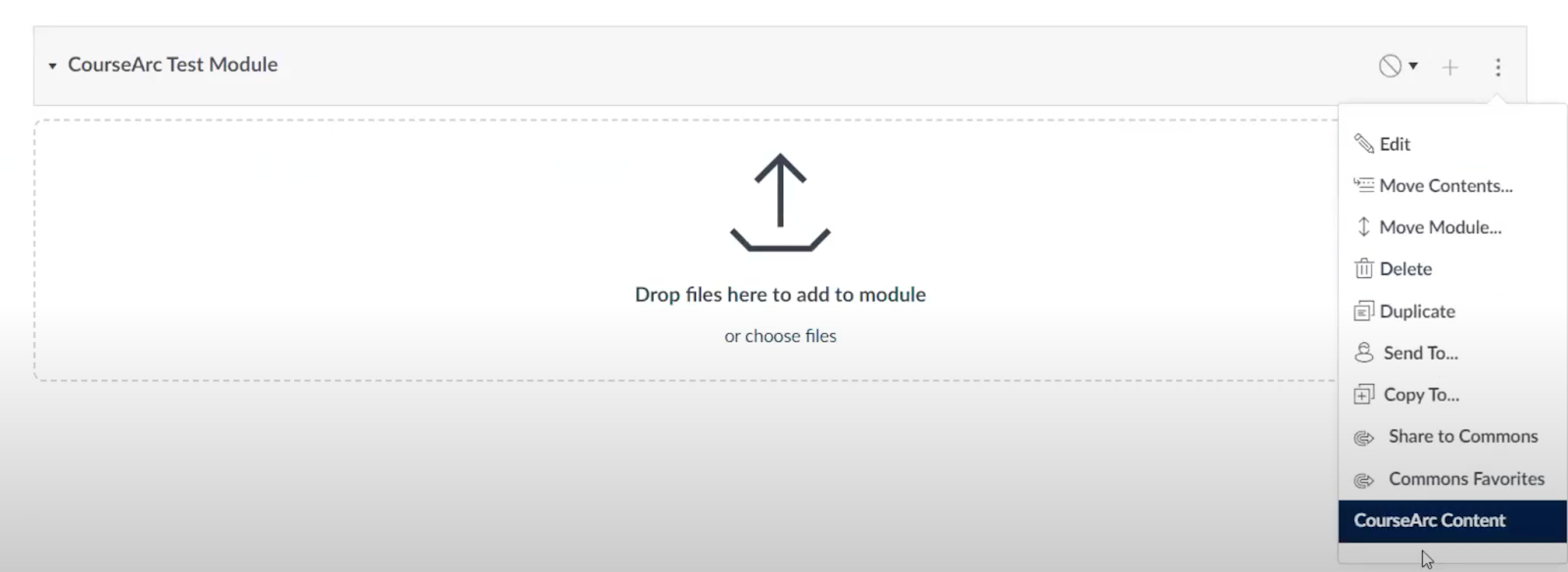

  1. Select ‘CourseArc Content’. (The wording of this option may vary at your organization.)

Canvas module menu options with CourseArc Content option highlighted.


A list of all of the CourseArc courses you have access to will appear. You can search by course title or Filter By Tag using the buttons at the top or move pages using the page numbers at the bottom if needed to find your course.

  1. Select the plus sign to the left of the course name to open the course and see a list of the modules in the course.CourseArc Content modal with a list of courses and buttons to search course titles, Filter By Tag, or change pages.


  1. You can add 1 or more modules all at one time. For each module you want to add, select the check box to the left of the module name and select the Graded or Ungraded option.

    If you selected the Graded option, this will also create a column in the gradebook for that module. Enter the point value you want the grade column to be worth in the gradebook.
    (You can edit that later if needed.)


Click the Select button at the bottom of that window to save.CourseArc Content modal, one course expanded to view modules, two modules have a checkmark. One has a radio button selected for Graded with Points: 1, the other has a radio button for Ungraded.

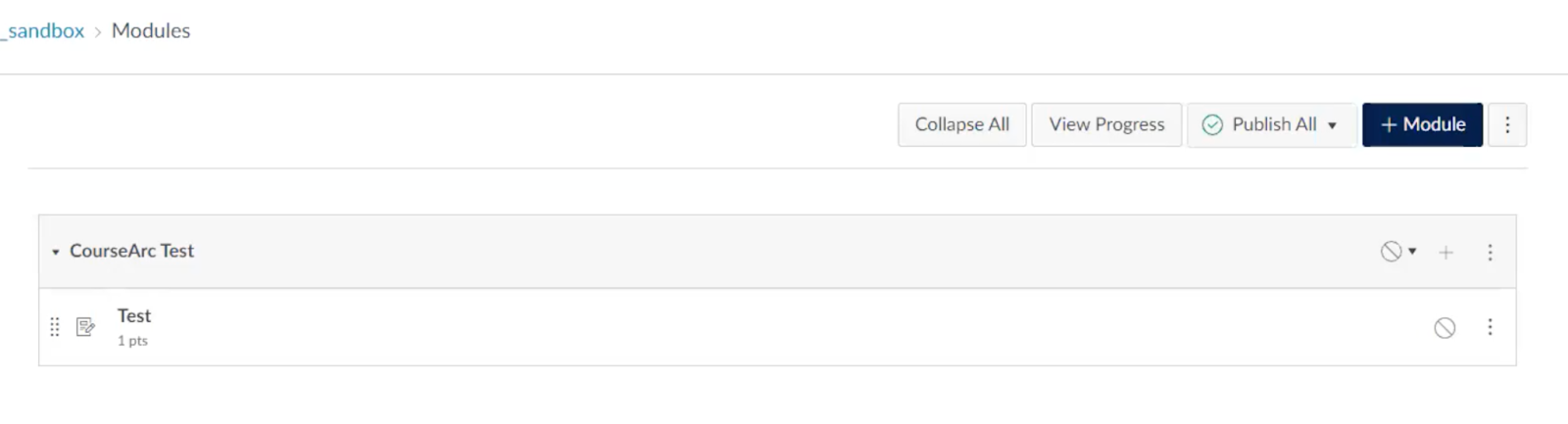

  1. Your link(s) to your module(s) will be listed in the Module area in Canvas. You can move content around in Canvas as needed. (The following screenshots are examples and don’t match the content option selected above.)



Canvas Modules area with newly added CourseArc content link visible

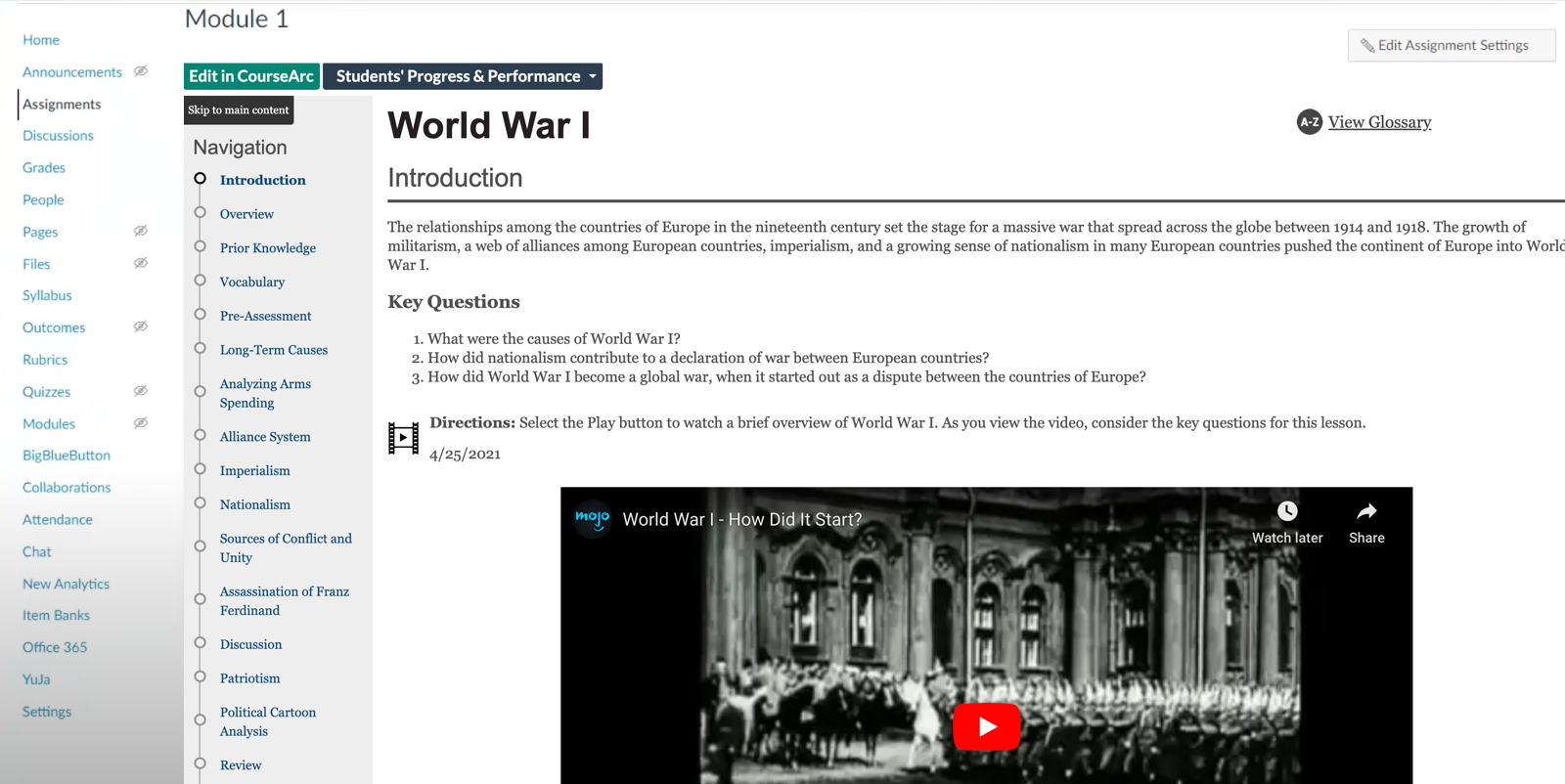

  1. Click on the link, and your first page of content will display. Notice the CourseArc content is embedded in the Canvas frame. You are still in Canvas at this time.

Canvas view with CourseArc content embedded


  1. Click the Edit in CourseArc button towards the top left of the content (under your module’s name) to edit the pages as needed.

  2. You are now viewing the same content in CourseArc. (Notice the logo at the top left helps you to see you are now working in CourseArc.) You are also automatically in Edit Mode.


    CourseArc view, in edit mode



Once your students start working on the content, you can view their progress. View this knowledge base article to learn more: How does an instructor view their students' progress?
